RECENZIJA- kako izabrati dobar motor za klizna vrata, da nije skup i da dugo traje (link na pdf)
BFT Srl Article code: P926183 00002
TECHNICAL FEATURES ARES 1000 ARES 1500
Control panel HQSC (incorporated) HQSC (incorporated)
Reversible/irreversible operator irreversible irreversible
Power supply 230 V~ ± 10%, 50 Hz single-phase 230 V~ ± 10%, 50 Hz single-phase
Absorbed power 240 W 250 W
Thermal protection integrated in the control unit integrated in the control unit
Leaf speed 9 m/min 9 m/min
Pinion pitch 4 (18 teeth) 4 (18 teeth)
Impact reaction electronic torque limiter electronic torque limiter
Type of limit switches electromechanical or inductive electromechanical or inductive
Manual release mechanical release with knob mechanical release with knob
Operating cycle very intensive use very intensive use
Environmental conditions from -20°C to + 60°C from -20°C to + 60°C
Degree of protection IP24 IP24
Operator weight 200 N (~20 kg) 200 N (~20 kg)
Dimensions 260 x 300 x 210 + 40 z 260 x 300 x 210 + 40 z
Good engine ? 🙂
Yes, of course
Yes, of course
• INTELIGENTNA TEHNOLOGIJA
Elektromehanicki mikroprekidaci koji kontroliraju završetak hoda.
Rolling code radio prijemnik dvokanalni ugradeni.
Upravljacka jedinica s funkcijama samoucenja i samodijagnoze
Upravljacka jedinica kompatibilna s EElink protokolom.
• SIGURNOST UPORABE
Posebno projektirana za jednostavnu i brzu ugradnju sukladno s uvjetima sigurnosti prema zakonskim odredbama za rad za strojeva.
Zahvaljujuci sistemu protiv prignjecenja, u slucaju dodira automatika preokrece gibanje sprijecavajuci štete ljudima i stvarima (BT).
• JEDNOSTAVNIJE UGRADNJE
Upravljacka jedinica ugradena, sa pojednostavljenim pristupom zahvaljujuci ceonom
položaju.
Upravljacka jedinica s programiranjem preko LCD zaslona.
___________________________________________________

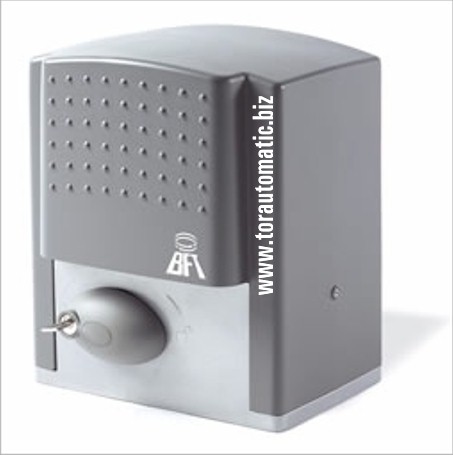

ELECTROMECHANICAL AUTOMATION FOR RACK SLIDING GATES
APARTMENT-BLOCK AND INDUSTRIAL USE
• SMART TECHNOLOGY
Electromechanical microswitches (inductive in the PROX version) that control the end stroke.
Incorporated two-channel rolling code radio receiver.
Control unit with self-learning and self-diagnostic functions.
• SAFE USE
Thanks to the elecronic obstruction detection, the operator reverses the motion and prevents damage to people and property in the event of contact (BT).
Specially designed for simpler and faster installation in compliance with the Machinery Directive safety standards.
• SIMPLER INSTALLATION
Incorporated control panel located frontally for easier accessibility.
Control panel with programming LCD display.
D-TRACK
The HQSC-D control panel operates the motor intelligent fashion, always providing compliance with European standards.
Furthermore, cycle after cycle, it measures the moving force compensating wear and friction due to temperature differences,
adjusting the maximum torque supplied accordingly!
ICE feature
The built-in control panel makes maximum use of the power of the microprocessor technology to manage the new ICE feature.
This allows the operator installation in extremely cold areas (down to -20°C), always guaranteeing perfect gate operation, even early
in the morning, with no fake safety obstruction detection.
